Telecaster Pickups
Brierley Guitar Pickups take on vintage and modern style Telecaster pickups. Great tones with a nod to the past. All telecaster pickups are hand wound.
Tamworth Set
The Tamworth set are low output Tele pickups wound around Alnico 5 magnets.
This set won't push your amp too hard. They are sweet, clean and clear.
Fantastic for country style picking.

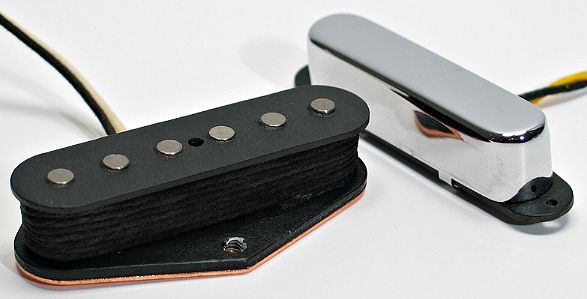

Vintage Early 50's set
Based on early 50's Blackguard Tele specs. Alnico3 bridge pickup hand scatter wound to early 50s specs. with 42 plain enamel wire. Neck is Alnico 5 hand scatter wound to early 50s specs, with 43 plain enamel wire. Chrome plated brass cover on the neck pickup.

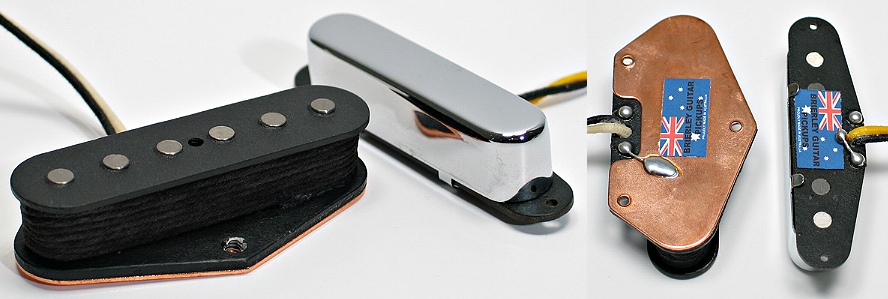

Vintage Early 60's set
Staggered pole Alnico 5 bridge, hand scatter wound to early 60s specs. with 42 AWG plain enamel wire. Neck is Alnico 5 hand scatter wound with 43 AWG plain enamel wire, also to early 60s specs. Chrome plated nickel silver covers.
ESQUIRE PICKUP
Wound to early 50s specs. with 42 AWG plain enamel wire.

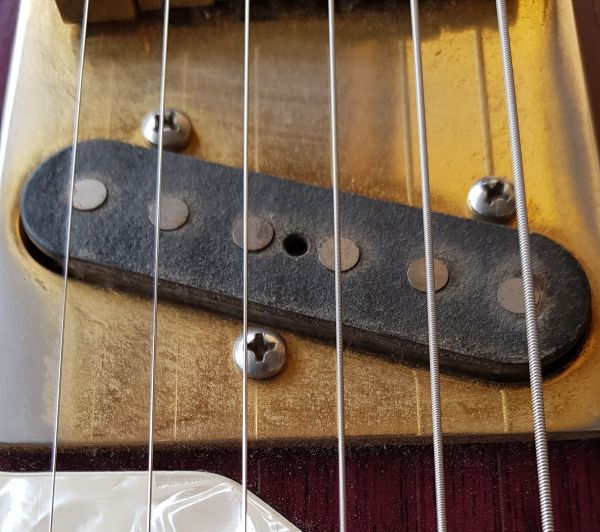

BROADCASTER / NOCASTER SETS
Broadcaster / Nocaster type set. Alnico 3 magnets in the bridge. Alnico 5 magnets in the neck. For those rockin' early 50's Broadcaster & Nocaster type tones.

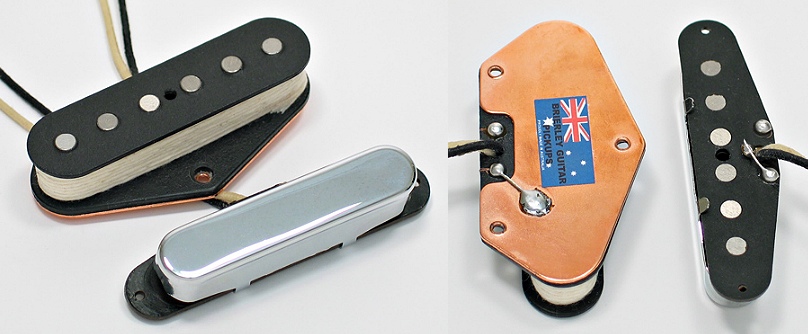

MODERN VINTAGE A5 SET
Designed to cover a wide range of tones. Alnico 5 magnets for a bright punchy tone. Vintage construction. Hand scatter wound with modern poly wire.
MODERN VINTAGE A3 SET
Modern Vintage set with Alnico 3 magnets for a softer early 50's type tone. Vintage construction. Hand scatter wound with modern poly wire.
MODERN VINTAGE A2 SET
Modern Vintage set with Alnico 2 magnets for a thick fat tone with softer attack and less treble. Vintage construction. Hand scatter wound with modern poly wire.
MODERN VINTAGE A5/A2 SET
Modern Vintage set with both pickups using Alnico5 magnets for bottom 3 strings (EAD) and Alnico 2 ones for the top 3 (GBE). Sweet highs with crisp bottoms. Vintage construction. Hand scatter wound with modern poly wire.
CUSTOM SET
Custom sets available from 7.5k to 10k. A2 or A5 magnets.
Please enquire and tell us what you're after.

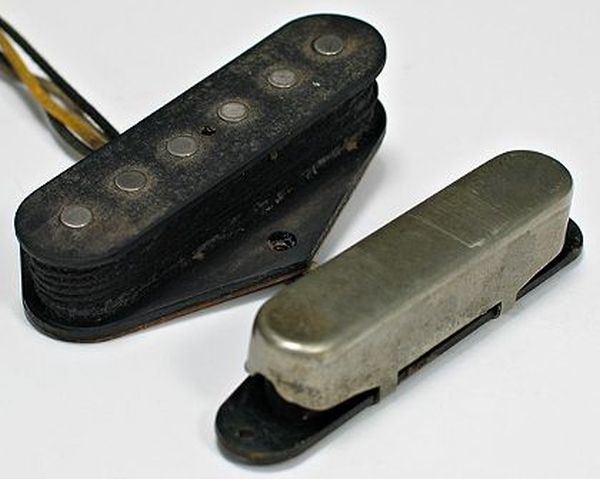

AGING / RELICING
All sets above can be ordered aged and reliced.
- Bridge pickup is reverse wound/reverse polarity for hum cancelling in position 2. If required, you can order same polarity/wind direction as neck pickup.
- Pickups are wax potted in a paraffin wax / bees wax mix.
- Pickup sets come complete with screws and springs. Cloth hookup wire used.
- Bridge pickups can be ordered slightly hotter if required.
® Strat, Stratocaster, Tele, Telecaster, Jaguar, and Jazzmaster are registered trademarks of Fender Musical Instruments Inc. Brierley Guitar Pickups is in no way affiliated with Fender, nor are our products authorized by Fender.
